VEHO-600 Installation Guide Video
How to install Tronxy new type VEHO-600 Diy Large Direct Drive 3D Printer Step by Step? Please check the installation guaide video.
VEHO-600-2E
Multiple Color 3D Printer 2-in-1-out Direct Drive Extruder
Silicone Heated Bed Normal 10 Minutes
The heated bed upgrade to the silicone heated bed AC electric heating the heated bed is fast and stable.
20 PIN Integrated Cable Print Heads
Easier handling of parts for replacing print heads. Easy to post-maintenance.
PEI Heated Bed Sticker
Full printing size 600*600mm
Easy to remove the model
Leveling Function Left and Right
Automatic left and right leveling function Newly in firmwware.
Adjust the level of the platform to be consistent.
Z- axis adjustment synchronization is more consistent.
Auto-Leveling TR Black Sensor
Can sense a variety of opaque hot bed panels: PEI, PEX, Lattice glass, PC board, PVC stickers, Metal Material, Magnetic stockers.
9 pieces of Big Hand Nut Easy to Leveling
Operation is more convenient, Accelerated Leveling
USB Direct Connection.
The machine is equipped with TF, USB TYPE-A and TYPE-B.
Three connection sockets, you can choose the appropriate way to connect according to the actual situation.
8 Language Control Touch Screen
Eight languages (English / Russian / Japanese / French / Spanish / German / Korean / Chinese)
Dual-axis OSG15 Guide Railway
All guide rails are OSG external dual axis metal guide rails, which make XYZ axis run more smoothly and have a longer service life.
Stable Axial Operation
7 OSG Guide Rails Ensure All-round Accuracy.

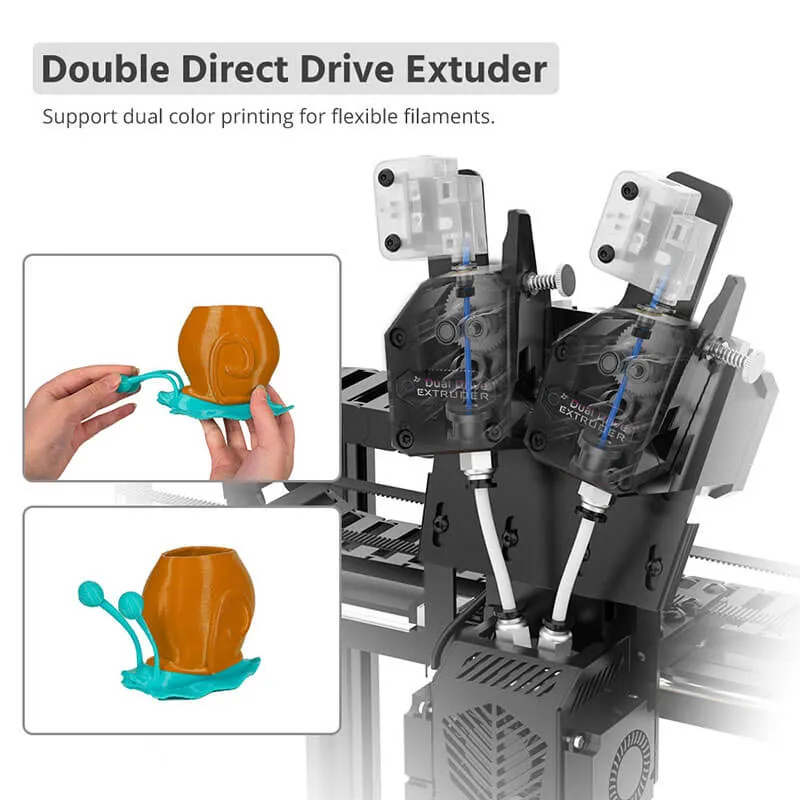

Double Direct Drive Extuder
Support dual color printing for flexible filaments.
Double Z-axis Lower Limit Switch
The Z-axis lower limit switch can adjust the Left and Right Leveling. After the power is cut off, the Zero point can be re-calibrated to prevent the fault of the model when the power is cut off.
Large Fixed Foot Cup & Reinforce Cross Braces
Enhance the stability of machine printing without shaking.
Resolve wobble and layering when printing.
Twice the reinforcement stable and anti-shake.
Mute Printing
Using the ultra-quiet motherboard, TMC TMC2209 Ultra-quiet driver, STM32F446ZET6 Master chip.
You will also have a comfortable and quiet printing environment.
Stable 30R Extrusion Profle Frame Structure
S3030R extrusion Prof ile and triangular structure foot code to fix each surface, made the structure more stable.
Dual Fan Cooling
Double turbo fan, strong cooling capacity, rapid model forming.
Double Filament Sensor
When it detects that the filament is broken, it can give an alarm in time and suspend printing, and then insert the filament to continue printing.
Power Off Resume
If there is a sudden power faiure during printing, the system will automatically save the printing progress, then you can continue printing.
Double Heating Protection
Thermal protector temperature switch Software thermal protection.

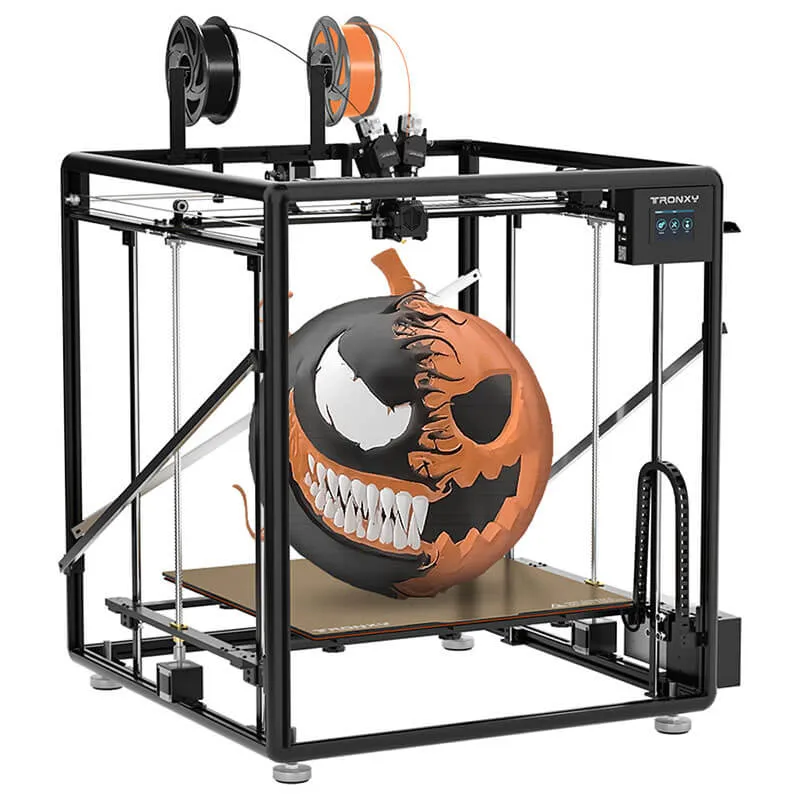

Dual Color Large Size Printing 2-1N-1-OUT
Double Filament Spools
Two Filament Entrances
Double Extruder Double Filament Run-out Detections
Double Direct Drive Extuder Support dual color printing for flexible filaments.
X5SA-600 / VEHO-600 / VEHO-600 2E 3D Printers
X5SA-600 / VEHO-600 / VEHO-600 2E 3D Printers
(scroll to view all):
| Model name | X5SA-600 | VEHO-600 | VEHO-600 2E |
| Machine | |||
| Heating Method | Conventional Heated Bed (DC) | Silicone Heated Bed (AC) | Silicone Heated Bed (AC) |
| Printing Platform | Lattice Glass Plate | PEI Heated Bed Sticker | PEI Heated Bed Sticker |
| Frame Reinforcement | X | ✓ | ✓ |
| Double Z-axis limit | Double Z-axis Upper limit | Double Z-axis Lower limit | Double Z-axis Lower limit |
| Real-time Z-axis adjustment | X | ✓ | ✓ |
| Print Head | Complex Multiple Lines | 20 PIN Integrated Cable | 20 PIN Integrated Cable |
| Auto leveling function | ✓ | ✓ | ✓ |
| Platform Adjustment Points | 6 Leveling Nuts | 9 Leveling Nuts | 9 Leveling Nuts |
| Foot Cup | Normal Fixed Foot Cup | Large Fixed Foot Cup | Large Fixed Foot Cup |
| Output Power | 600W | 1100W (Heat bed 800W Power source 360W) | 1100W (Heat bed 800W Power source 360W) |
| Standard Nozzle | 0.4mm | 0.6mm | 0.6mm |
| Print Color (Extrusion Head) | Single Color | Single Color | Dual Color (2-in-1 out) |
| Power Supply | 800W | 360W | 360W |
| Filament Run-Out Detection | Single | Single | Double |
| Extrusion | BMG Extruder | BMG Extruder | Double BMG Extruder |
| Rails | OSG 15 high quality guide rail | ||
| Priting Principle | Fuse build-up fabrication (FFF) | ||
| Filament run-out detection | ✓ | ||
| File Type | Input: STLOBJ / DAE / AMF Output: G-CODE | ||
| Supporting Materials | PLA / ABS / PETG / WOOD / TPU | ||
| Quiet Drive | TMC2209 silent driver | ||
| Master Chip | STM32F446ZET6 | ||
| Machine Size | 900mm x 872mm x 1100mm | ||
| Language | Chinese, English, Japanese, Korean, Russian,German, French, Spanish | ||
| Print Size | 600mm x 600mm x 600mm | ||
| Power Off and Continue Playing | ✓ | ||
| Print Speed | 20-150mm/s (60mm/s) recommended | ||
| Print Thickness | 0.1-0.6mm (optional according to nozzle) | ||
| Positioning Accuracy | X/Y:S0.00625mm Z:S0.00125mm | ||
| Print Color | Monochrome | ||
| Temperature Parameter | Nozzle maximum temperature 275° Ambient temperature 8°-40° | ||
| Input Voltage | 110-230V 50-60HZ | ||
| Slicing Software | CURA Prusa | ||
| File Type | Input: STL / OBJ / DAE / AMF Output: G-CODE | ||
| Connection Method | USB-A, USB-B, TF card | ||
| Operating System | Windows, Mac OS | ||
| Optional Printer Heads | 320 degree high temperature head / Multicolor 2-in-1- out head / Laser engraving head | ||
| Certification | CE / FCC / ROHS | ||
| Machine | Size: 900*872*1100mm (35.43*34.33*43.3inch) Weight: ≈38kg |
||
| Package 1 | Size: 982*302*235mm (38.66* 11.88*9.25inch) Weight: ≈21kg |
||
| Package 2 | Size: 700*700*225mm (27.55* 27.55*8.85inch) Weight: ≈22.5kg |
||
User Manual Documentation
Configuration File
Configuration File to Tutorial
- Verify that main board powers up and that the display is operating / displaying normal.
- Connect USB port to PC and verify communications between main board and PC. Note any discrepancies and correct.
- Manually stoke all axis movement (X,Y,Z). Verify all movement smooth and unrestricted. Note any discrepancies and correct. Look for any wobble or movement shift.
- Home all axis (X,Y,Z). Verify homing successful. Note any discrepancies and correct.
- Perform a
