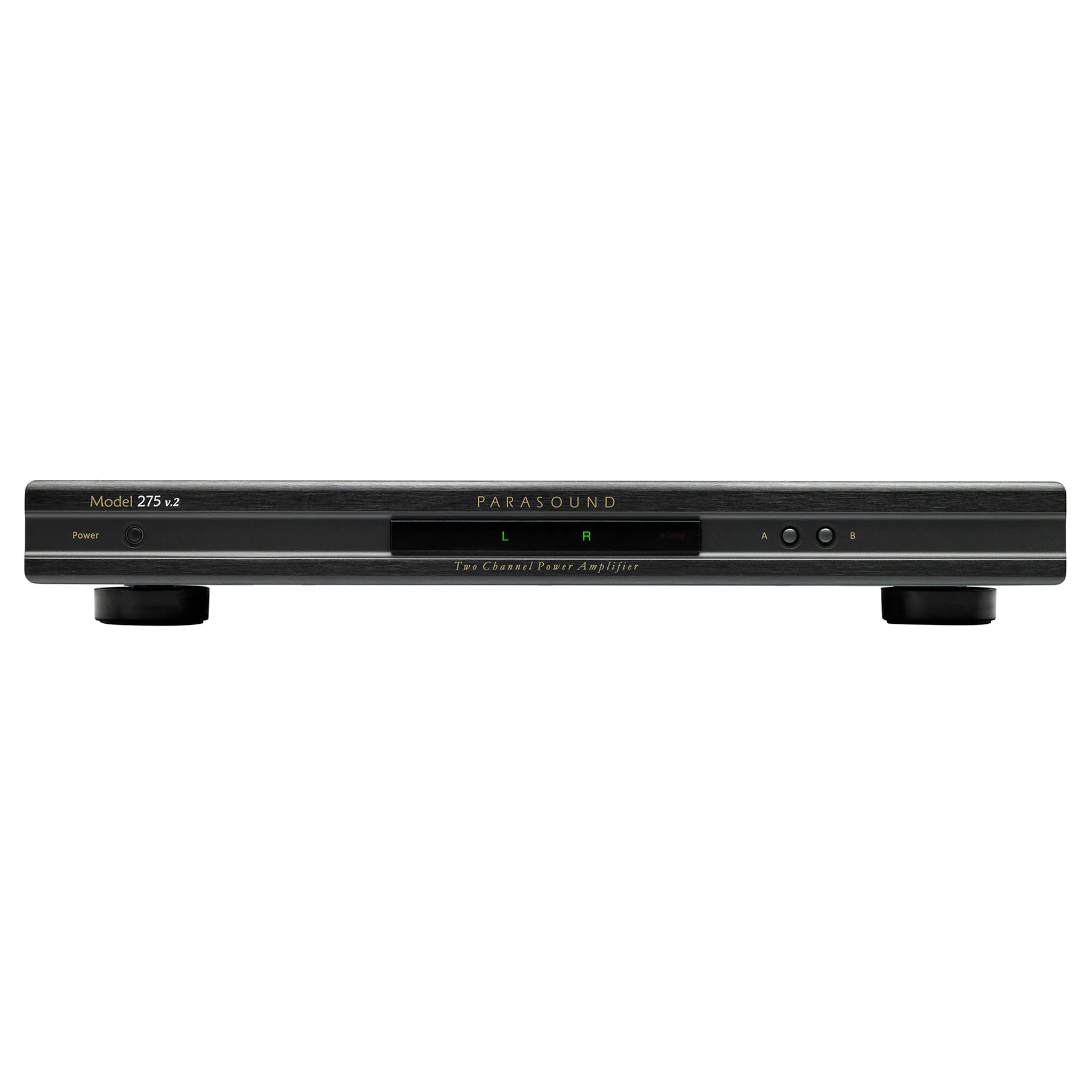

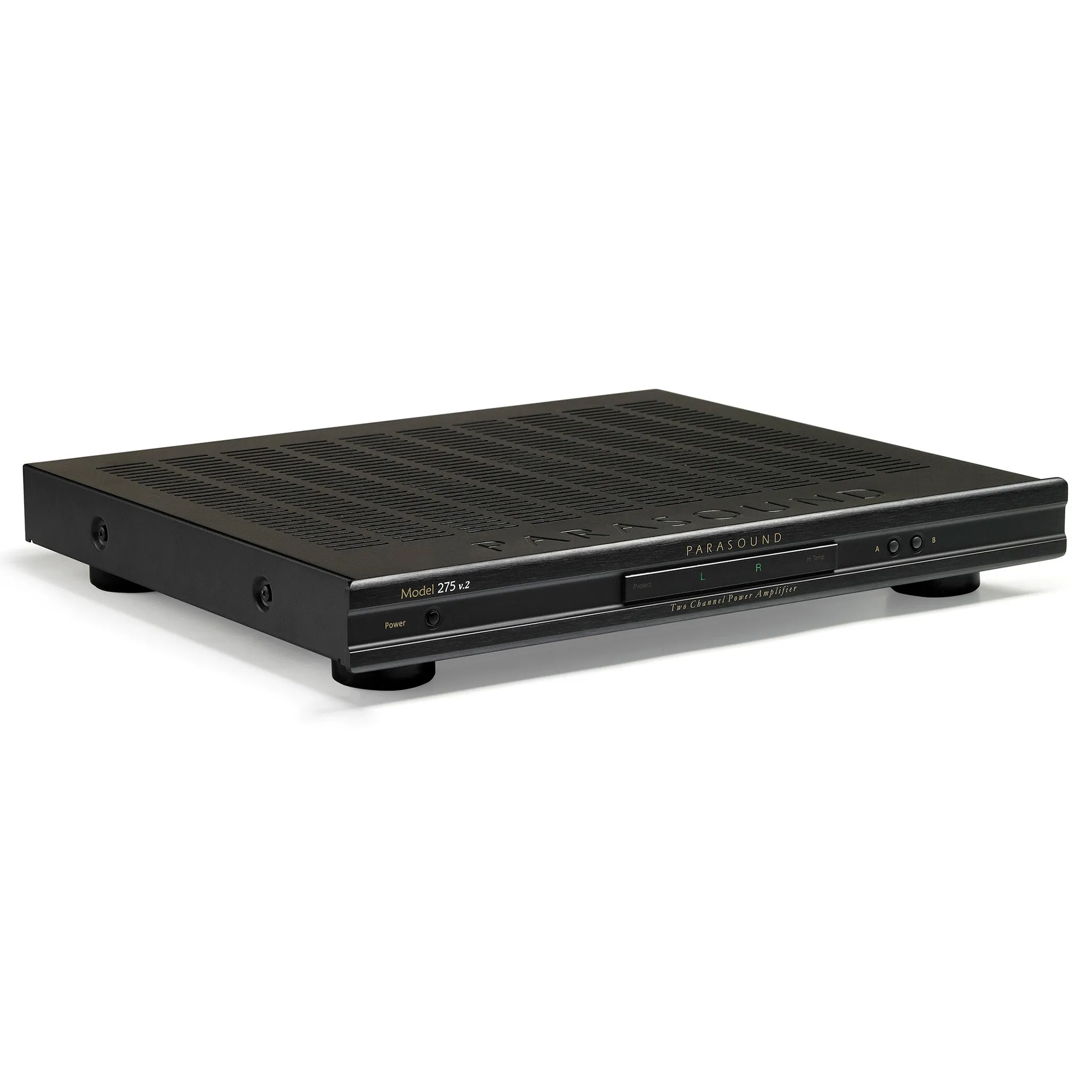

Parasound NewClassic 275 v.2 Stereo Power Amplifier

A 90 Wpc fully discrete amp bridgeable to 200 W.

The Parasound NewClassic 275 v.2 power amp delivers 90 W into 8 ohm and 150 W in 4 ohm. It can be bridged to deliver 200 W mono. The 2250 has a high peak current delivery of 20 A, and is stable down to a 2 ohm load. There are two pairs of speaker outputs with front panel A/B buttons.

The fully discrete circuitry with a high-current toroid transformer is designed to be efficient and low heat. There are DC Servo and relay protection circuits

Features

• High pass filter, switchable for 20Hz or 40Hz
• Automatic on/off by DC trigger with looping output
• Automatic on/off by audio signal with 2 sensitivity settings
• Rear-mounted left and right gain controls
• Standby, channel status and high temperature indicators
• Gold-plated RCA input jacks
• Heavy duty 24k gold-plated 5-way speaker terminals
• 115/230v selector on rear panel

Specifications

Power Output (4 ohm, 8 ohm, mono): 90 W, 150 W, 200 W

Input: Stereo RCA

Input Impedance: 33 kΩ

Outputs: Stereo RCA loop

Dimensions (WHD): 17.25" x 2.5" x 16"

Weight: 20 lb.
