| Product Attribute | Attribute Value |
|---|---|
| Data Rate | 100 Mbps |
| Interface | EtherCAT |
| Number of Channels | 8 |
| Relay Type | Form A |
| Resistance | 30 mO Max. |
| Series |
Overview
Advantech AMAX-4800 Series 16-channel Isolated Digital Input/Output EtherCAT Remote I/O Module:

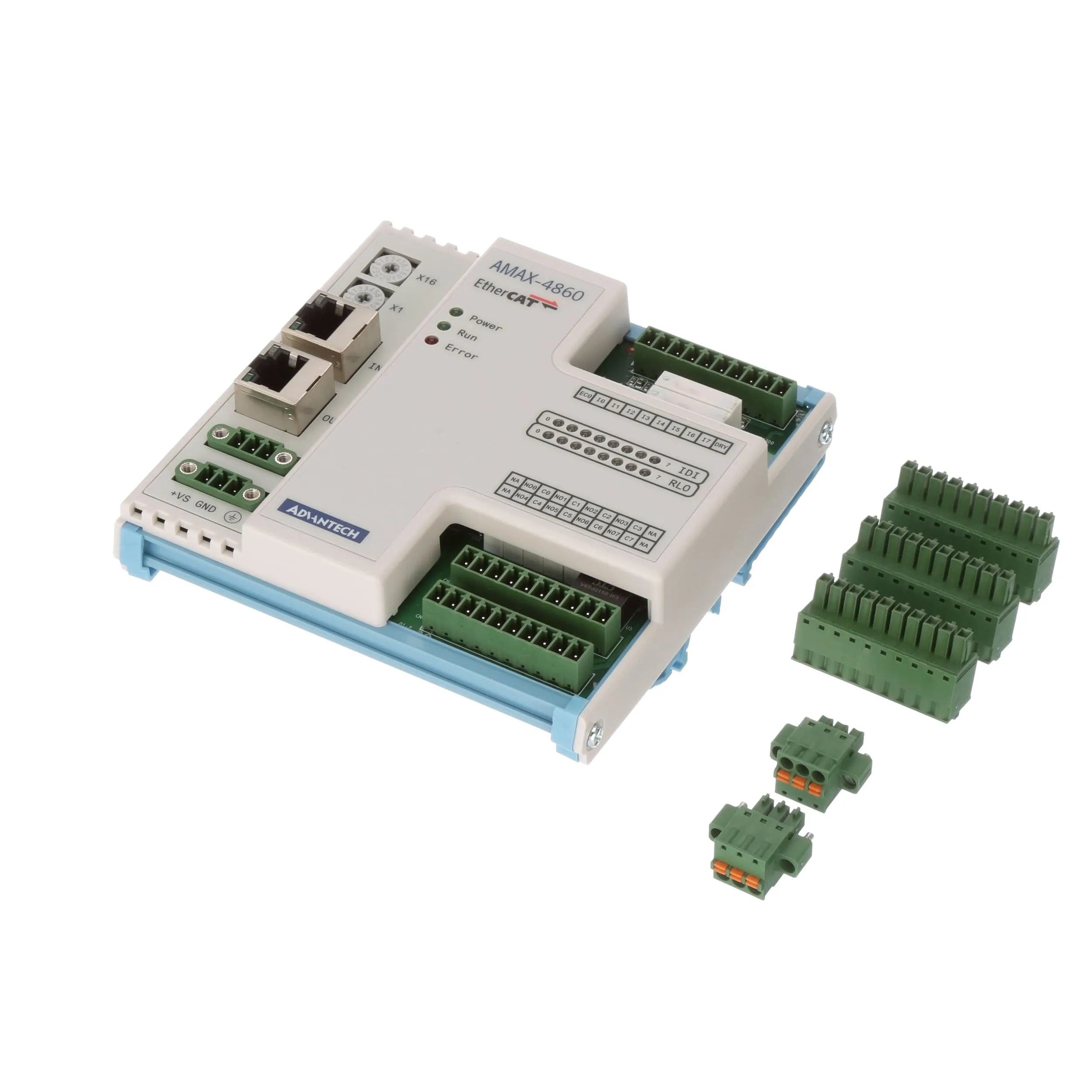

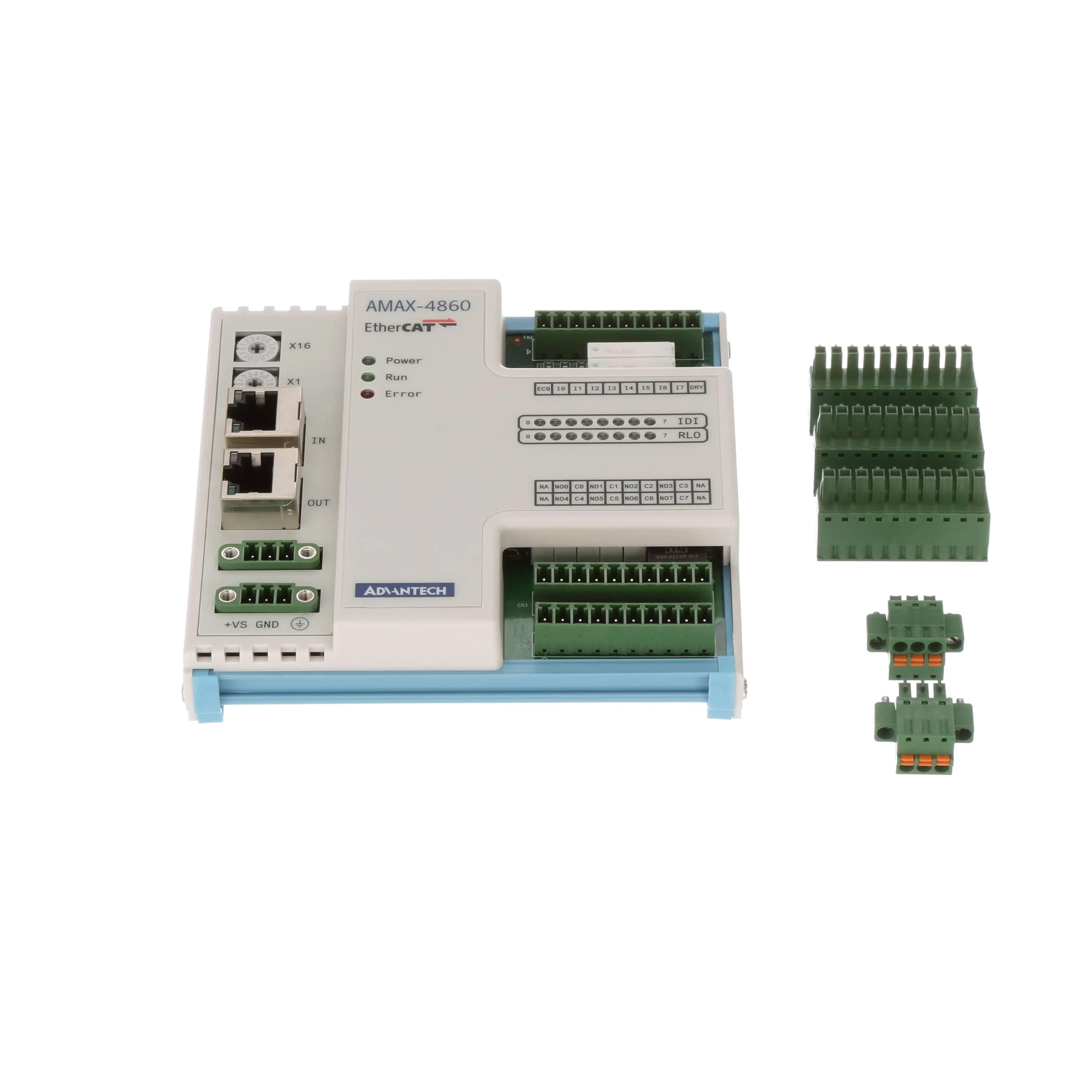

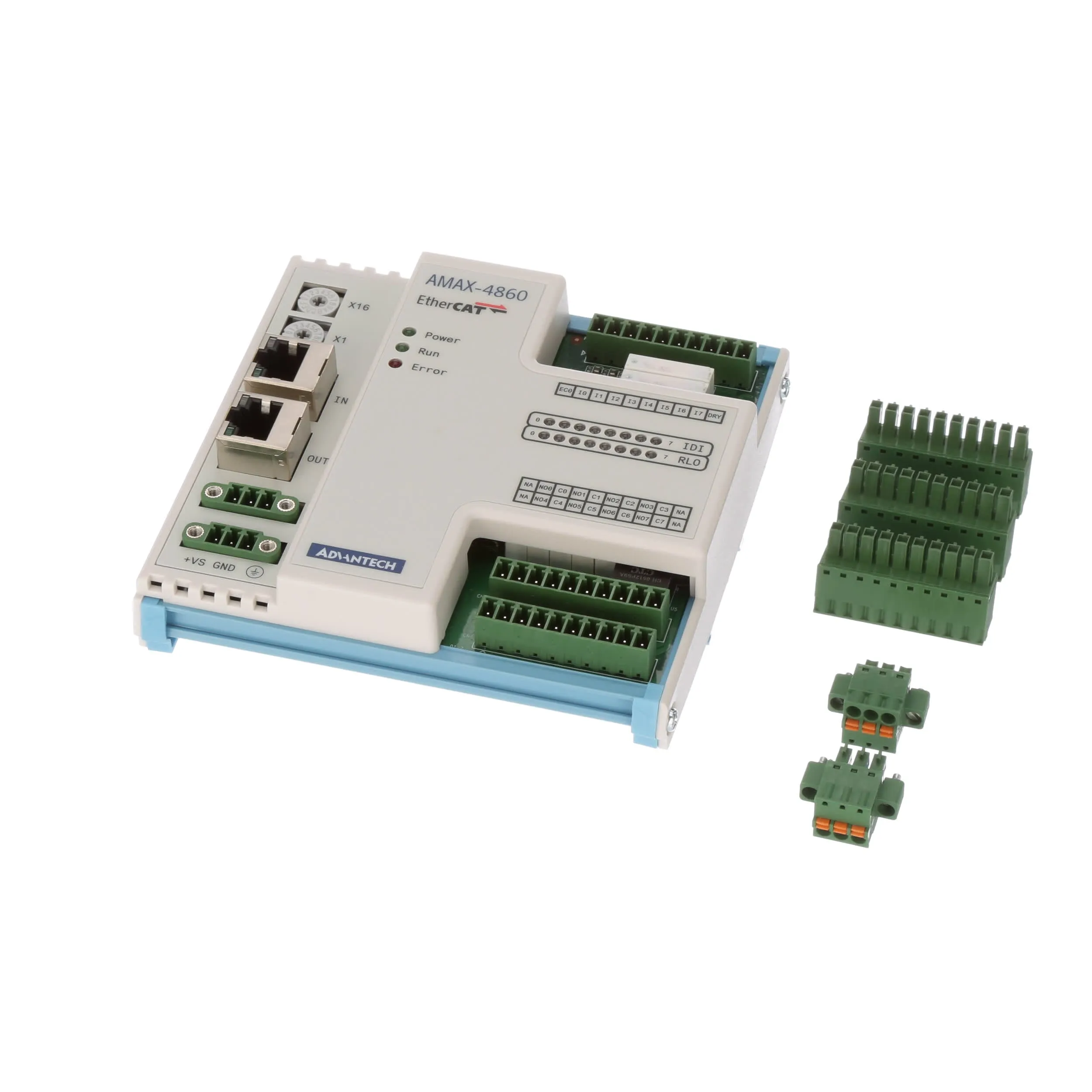

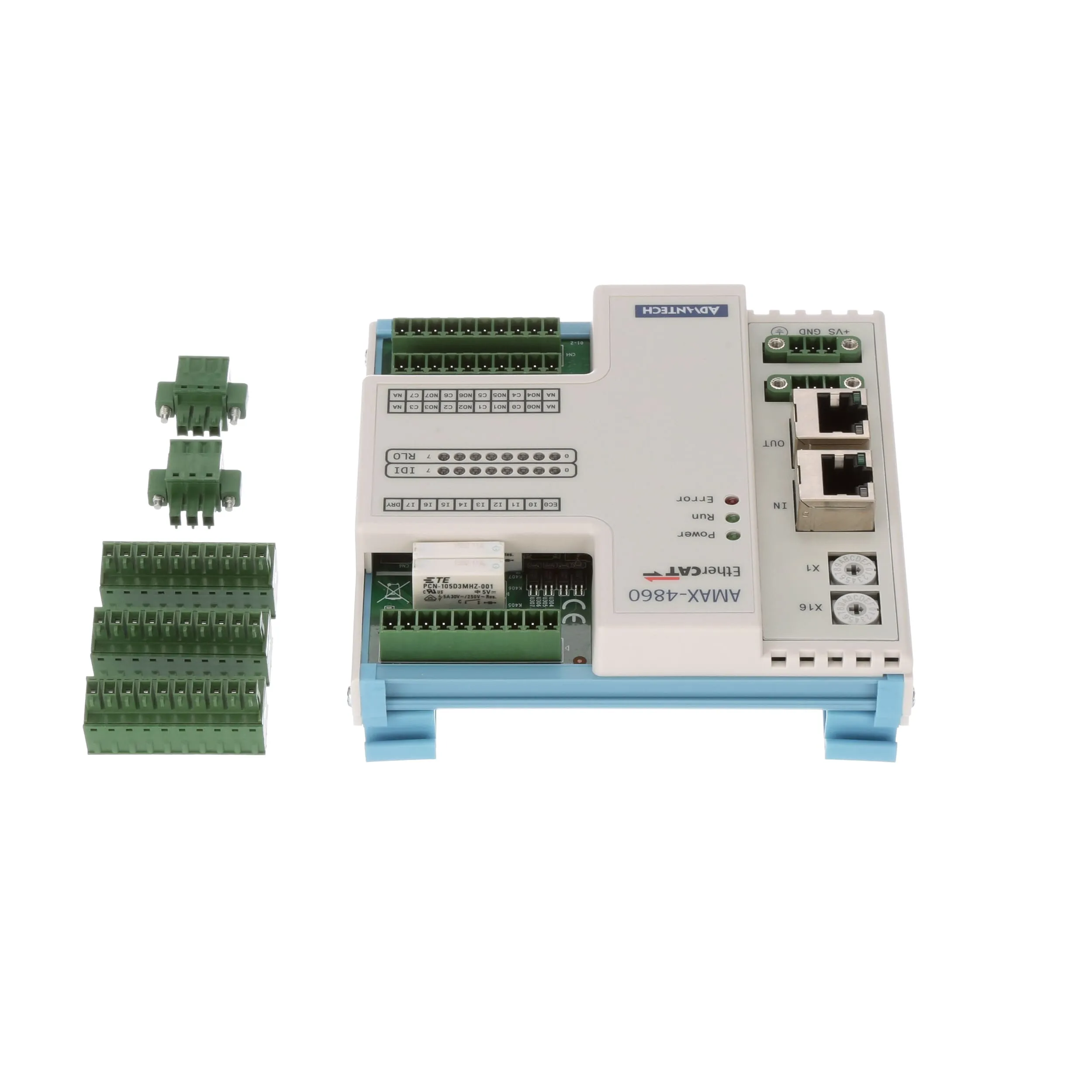

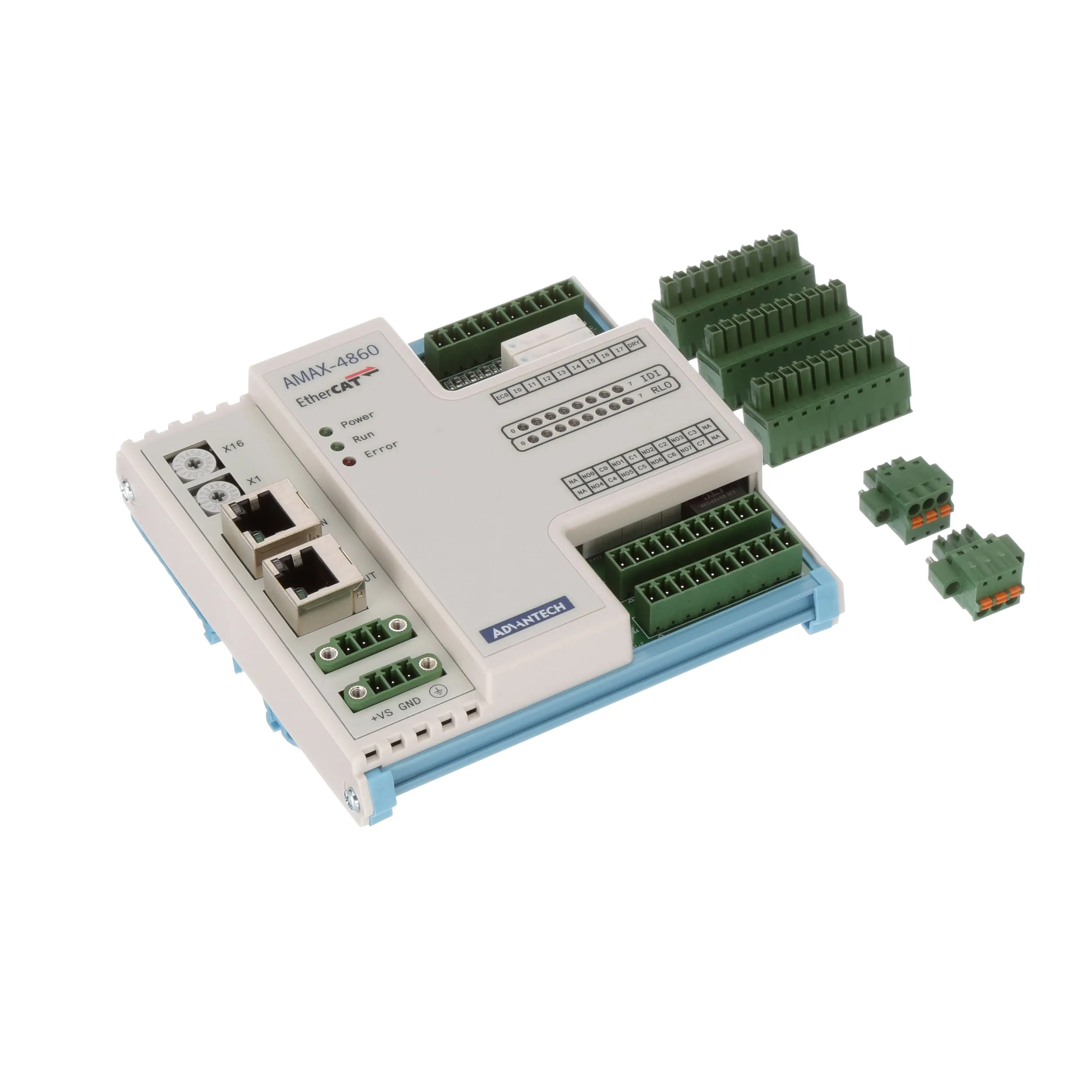

The AMAX-4860 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input channels are protected by 2,500 VDC isolation circuits.
The AMAX-4800 Series comprises industrial EtherCAT slave modules equipped with the EtherCAT protocol. The compact size and integrated DIN rail mount kit ensure easy installation in cabinets. Euro type pluggable terminal blocks and an LED indicator facilitate system setup and maintenance. All modules are protected by an isolation circuit for demanding industrial applications.
Features:
The AMAX-4800 series terminal type EtherCAT remote modules are high-density channel design for distributed control system. This feature provides a good cost-effective performance. The AMAX-4800 series support various I/O formats, such as isolated digital input, isolated digital output, photoMOS relay output and relay contact, etc. Furthermore, we also provide analog input and analog output module for data acquisition and device control. Terminal block, LED indicator, Switch and EtherCAT port can be operated at front side. These provide a convenient way to wire, test, debug or maintain. In particular, AMAX-4800 series equip euro type pluggable terminal block to insert wires without screw tools. These features can help user to reduce maintenance cost and time.
